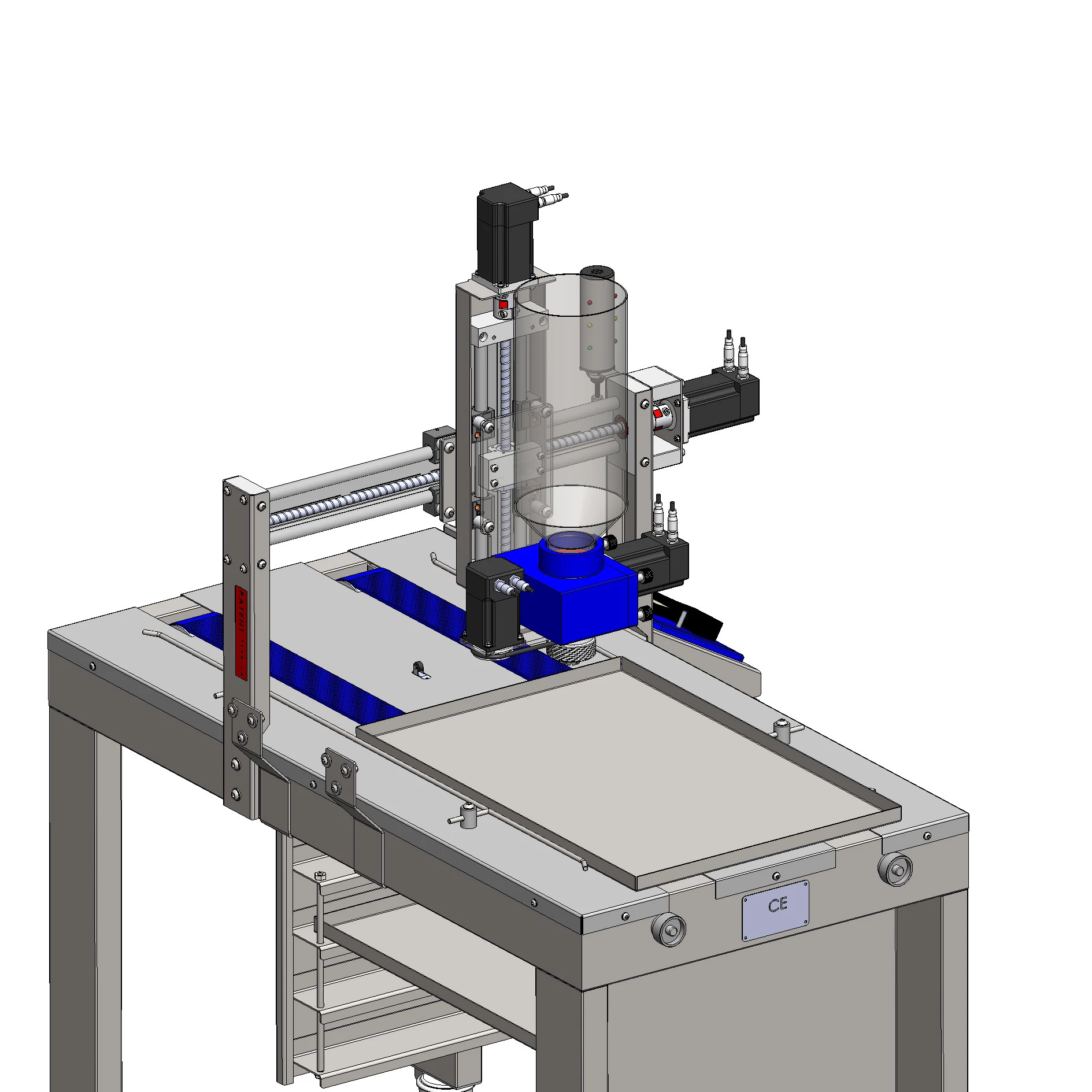

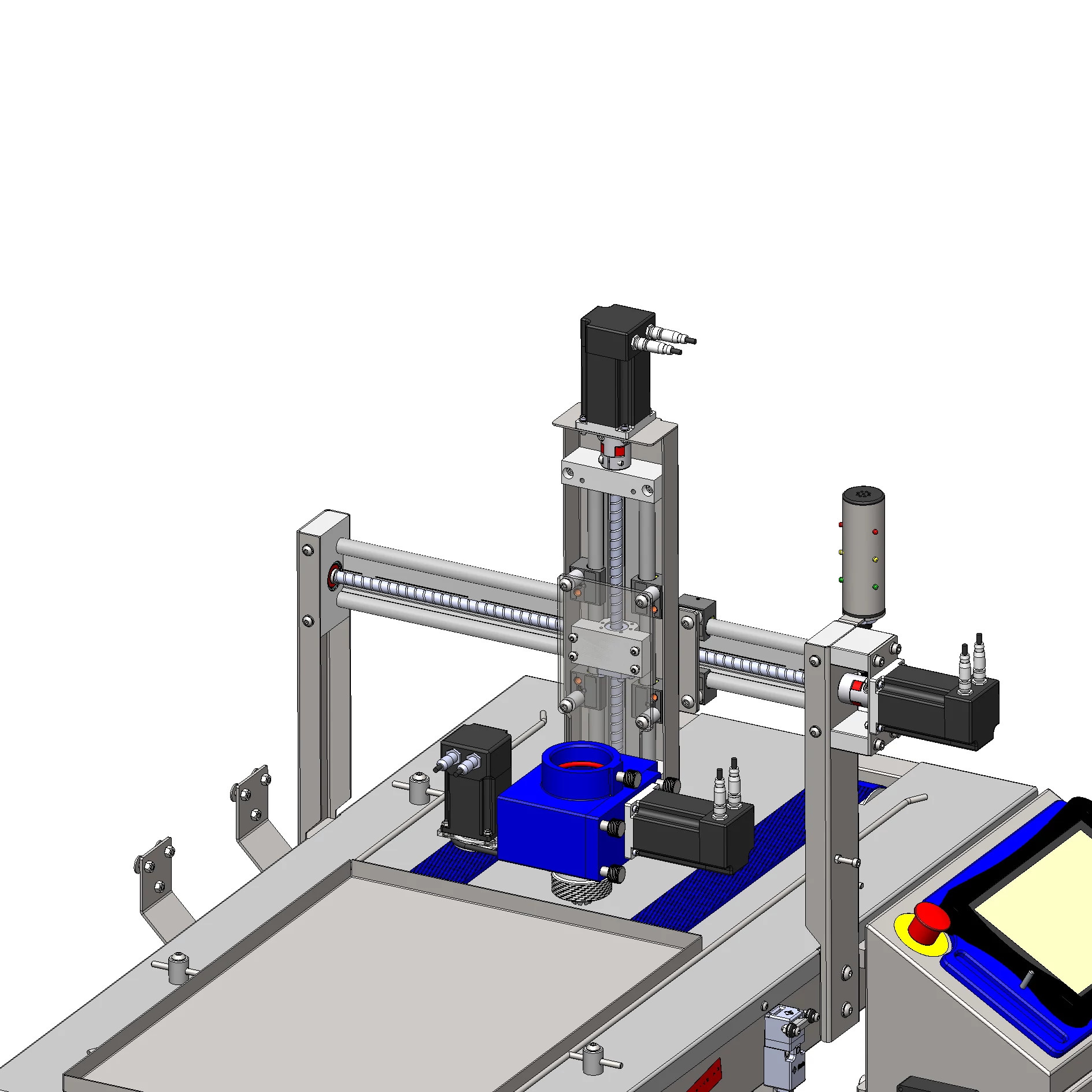

The machine is a casting machine/dosing machine for cookies with 3+1 electric interpolated axes. The machine equipped with a pump mounted on electric axes performs drawings of cookies or decorations on cakes with flush pouring of dough. There are 4 step motors that drive the axes and the transversal and vertical sliding is on IGUS WS 1660 guides with ball screw assembled inside. The WS 1660 guides are equipped with 4 WJ200UM supports. Translated with www.DeepL.com/Translator (free version)

Y and Z axis movement
Solutions: WS 1666 PROFILE combined with WJ200UM supports

Environment from 0 degrees centigrade in stationary laboratory conditions to +30°C, with the presence of flour dust and hot water washing.
The challenge was to ensure good flow with low cost maintenance free parts. Requirements: Ensure creep. Alternatives: HIWIN guides Excellent relationship with area technician Costantini Andrea.
