Applikationsbeschreibung der Anlage
It’s a machine tool named BX500A, 5-axis machining center provides fast and contour-accurate motion guide, with high-quality surface and the shortest machining time. It’s using with
Problemstellung
It’s a machine tool named BX500A, 5-axis machining center provides fast and contour-accurate motion guide, with high-quality surface and the shortest machining time. It’s using with
Pinnacle machinery is in machine tool industry, and the end customer could be in aerospace industry or automobile industry.

It’s a processing area with cutting oil and water. The cable chain should be used to protect cables connecting with spindle. The moving speed of rotary is very slow, rotate angle is 180 degree max.
減輕重量能夠快速安裝長使用壽命降低組裝時間延長維護間隔
We think igus provides wonderful products and service, and there’s no doubt we will use more and more igus E-chain. The 3D website, and on-line tool is very useful, thanks to salesguy Derek Hsu for quick and instant support.

Wie wurden mit Automatisierung Prozesse optimiert/Kosten eingespart/Effizienz gesteigert?
拖鏈 TRCF.85.240.0

Solutions/ Alternative/ Sustainability:

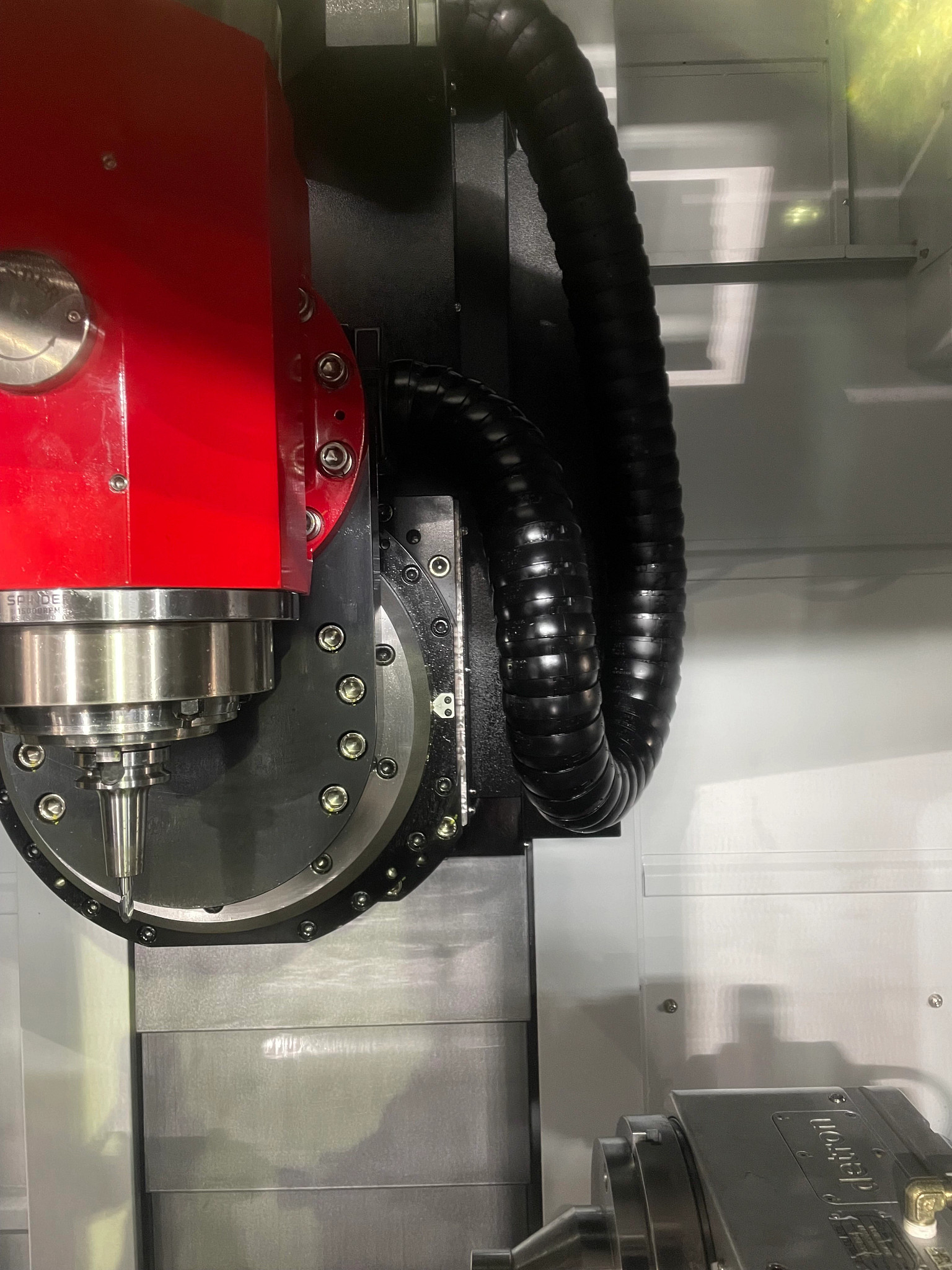

Using to protect cables connecting on spindle. Originally we use local chain (Sinz) but they have no cable chain with smaller bending radius, and Triflex is suitable for rotate application.
1.Closed type E-chain 2.Triflex 3.Local made chain
Yes, our machine tool helps end customer in processing metal parts.

Eingesetzte Produkte von igus
  • Drehachse
  • Geschätzter Return on Investment
  • 1-3 Monate
  • Wie sind Sie auf den ROIBOT Wettbewerb aufmerksam geworden?
  • Kollegen
